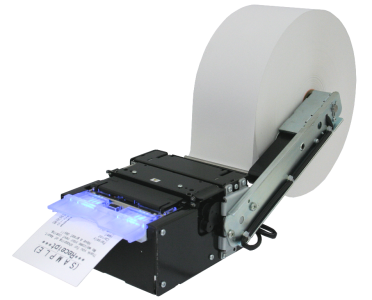

High reliability model
3 inch KIOSK printer


  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 80mm

Product featuresProduct features

  1. Solid and durable structure
  2. Built-in presenter with Blue and Red LED
  3. 16 gray scale printing
  4. It is equipped with "Mega Font" which has almost 2 times many dots as those of regular fonts.
    It realizes large and clear text printing.
  5. Supporting various types of 2D barcodes printing
  6. Applicable for optional paper arm up to 200 mm O.D. The arm is able to set left and right side, also, at upper, backside and lower position.

Main specificationsMain specifications

Model name NP-G30D
Print speed 200 mm/sec.
Number of dots / Line 640 dots
Paper width 76 mm, 80 mm, 82.5 mm
Print width 70 mm, 72 mm, 80 mm
Paper diameter Up to 250 mm (to use with optional paper holder: UPH-U250)
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR code (model2), Split QR codes (model2), Micro QR code
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut
External dimensions 121.2 (W) x 137.1 (D) x 72 (H) mm (w/o optional paper arm)
Options PS11-E3/U3, UPH-Arm150/Arm200, UPH-U250


If you have any question, please contact us.


Model name:PS11-E3/U3

  1. Power supply DC24V
  2. 2 pin converter is bundled.
  3. It comes with the connector for protection against reverse connection.

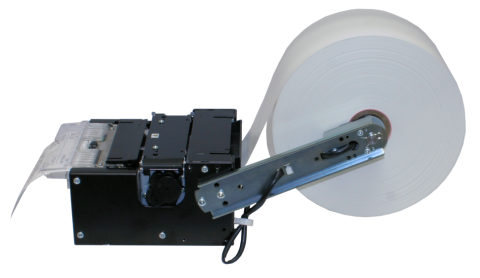

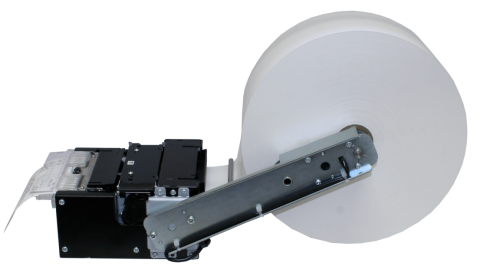

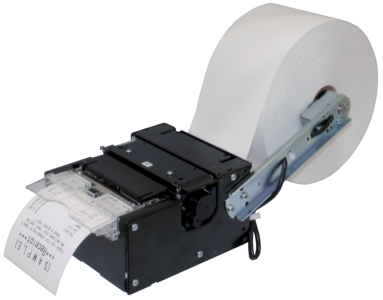

Model name:UPH-Arm200/Arm150

  1. Large size paper holder
    Up to 200 mm O.D. (UPH-Arm200)
    Up to 150 mm O.D. (UPH-Arm150)
  2. It comes with paper near end sensor
  3. Multiple paper positioning

Model name:UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
