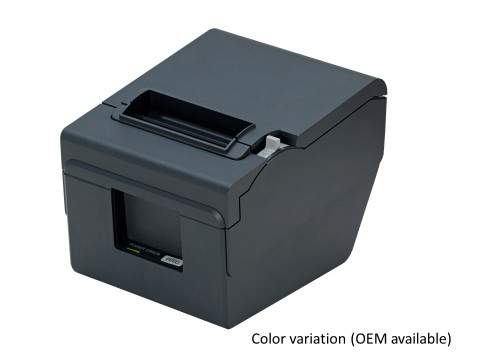

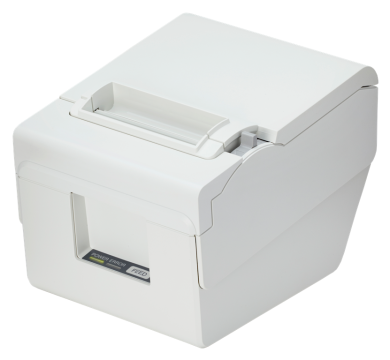

POS printer
2-3 inch selectable POS printer

NEX-T3202R

  • Power supply included
  • 203dpi
  • 24V駆動
  • オートカッタ
  • シリアルインターフェイス
  • Paper width 58mm
  • Paper width 80mm
  • Gradation print

Product featuresProduct features

  1. To simplify the function and performance, it realizes compact size and low price.

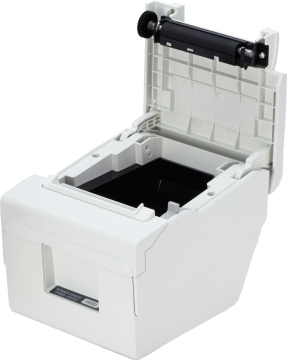

  2. Drop-in type paper holder for easy paper replacement
  3. Printing speed up to 200 mm/sec.
  4. A power supply (DC24V) is included.
  5. Wall mount is available with optional mount kit.

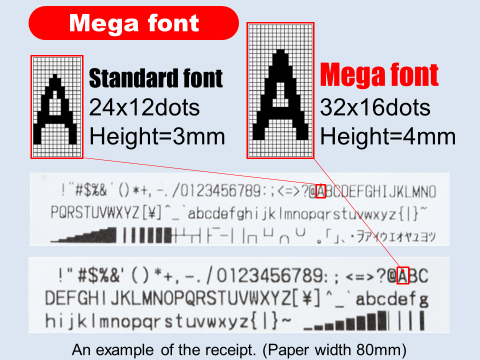

  6. It is equipped with "Mega Font" which composed of the almost 2 times dots from conventional font, to provide for maximizing the legibility of printed receipt.

Main specificationsMain specifications

Model name NEX-T3202R
Print speed 200 mm/sec.
Number of dots / Line 576 dots
Paper width 58 mm, 80 mm
Print width 45 mm, 54 mm, 64 mm, 72 mm
Paper diameter 83 mm
Character International, Arabic, Thai, Polish, Russian, Scandinavian, Greek, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODE93,CODABAR, ITF, CODE128, QR code (model2), PDF417
Interface Serial (RS232C)
Cutter Partial cut
External dimensions 143 (W) x 190 (D) x 142 (H) mm
