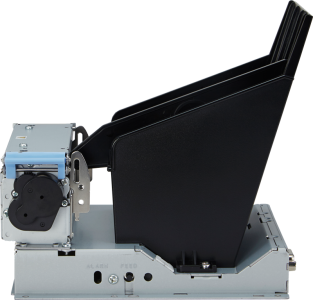

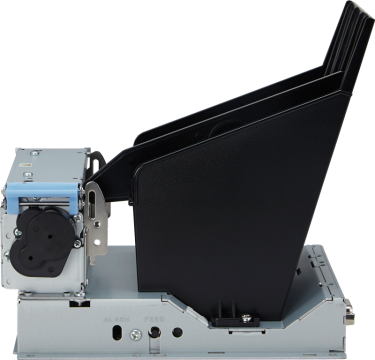

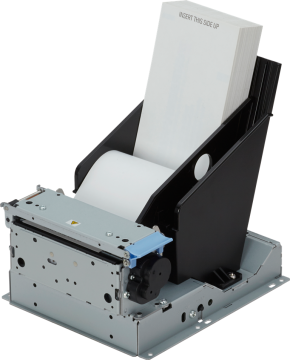

Ticket printer for dedicated to use of fanfold paper
3 inch KIOSK printer

NP-3513D-2

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 65mm
  • Paper width 76mm
  • Paper width 80mm
NP3513D2_Eng

Product featuresProduct features

  1. Paper thickness up to 150 micrometres
  2. Operating temperature: -20 to +60 degrees Celsius

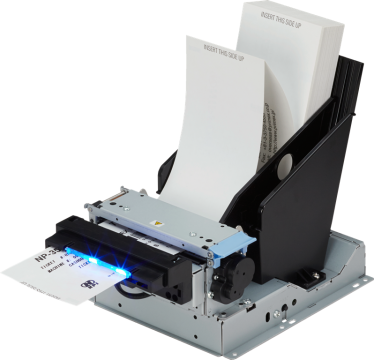

  3. Optional LED bezel is attachable.
  4. Short depth design: 163.3 mm in depth

Main specificationsMain specifications

Model name NP-3513D-2
Print speed 200 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm, 76 mm, 65 mm
Print width 72 mm, 70 mm, 60 mm
Paper length 4 inch, 5 inch, 156 mm, 165 mm
Paper stacker capacity 400 sheets with 120 micrometres thick ticket
Option PS11-E2/U2, BEZ-332

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

Model name：BEZ-332

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.
See more details of the productSee more details of the product
