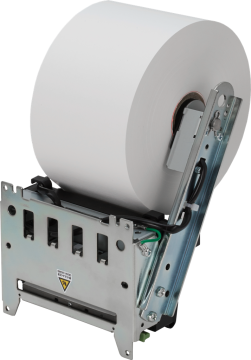

Face mount model
3 inch KIOSK printer

NP-F3092D

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • Paper width 80mm
NPF3092D_Eng

Product featuresProduct features

  1. 10 different paper positions are possible.
  2. Low price, super compact kiosk printer

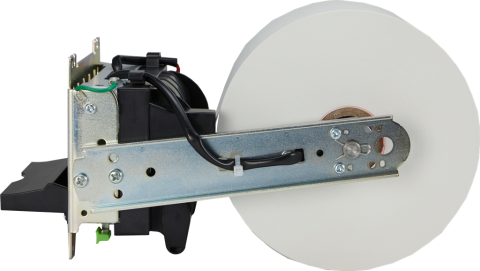

  3. Arm position can be changed by users. (Upwards, backwards or downwards)
  4. Roll paper can be set at both the right and left by changing the arm part position.

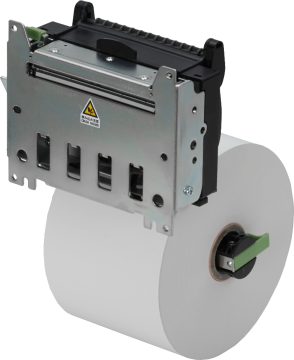

  5. The printer position can be selected from either upright (printing side downward) or inverted (printing side upward).
  6. Optional bezel is attachable.

Main specificationsMain specifications

Model name NP-F3092D
Print speed 150 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm
Print width 72 mm
Paper diameter 120 mm
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128,GS1 DataBar, QR code（model2）
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 122.2 (W) x 97.6 (D) x 160.8 (H) mm
Options PS11-E2/U2, BEZ-430

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

Model name：BEZ-430

  1. Simple amd low cost bezel
See more details of the productSee more details of the product
