Ultra compact and high performance 3 inch KIOSK printer module

NP-KV30 series

  • 203dpi
  • 24V駆動
  • Bluetooth
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 80mm
Series line-up
NP-KV30UK: 3 inch KIOSK printer with USB interface
NP-KV30UM: 3 inch printer module with USB interface
NP-KV30DK: 3 inch KIOSK printer with USB and serial interface
NP-KV30DM: 3 inch printer module with USB and serial interface
NP-KV30BK: 3 inch KIOSK printer with USB, serial and Bluetooth interface
NP-KV30BM: 3 inch printer module with USB, serial and Bluetooth interface
NPKV30_Eng

Product featuresProduct features

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state)
  6. Supporting various types of 2D barcodes printing

Main specificationsMain specifications

Model name NP-KV30 series

InquiryInquiry

If you have any question, please contact us.

OptionOption

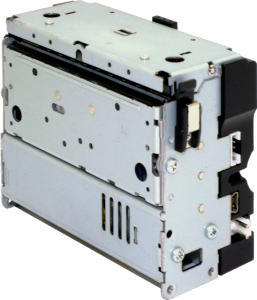

Model name：NP-KV30UM

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state.)
  6. Supporting various types of 2D barcodes printing.
See more details of the productSee more details of the product

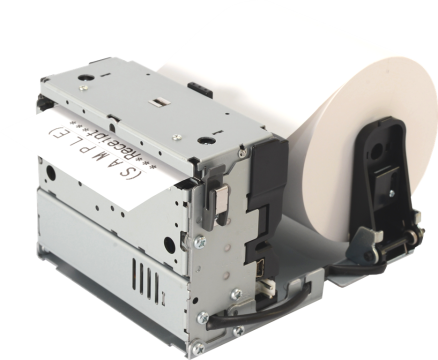

Model name：NP-KV30UK

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. It is equipped with 3-ways bracket which enable to change the installing position to the standards, the tilt and the vertical for variety of installations.
  4. Printing speed up to 200 mm/sec.
  5. Operating temperature: -20 to +60 degrees Celsius
  6. Lock-free cutter (recovering automatically from locked state)
  7. Supporting various types of 2D barcodes printing
See more details of the productSee more details of the product

Model name：NP-KV30DM

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state)
  6. Supporting various types of 2D barcodes printing
  7. Optional LED bezel or presenter is attachable.
See more details of the productSee more details of the product

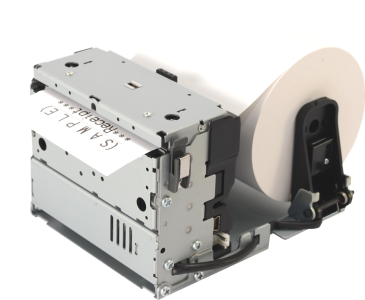

Model name：NP-KV30DK

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. It is equipped with 3-ways bracket which enable to change the installing position to the standards, the tilt and the vertical for variety of installations.
  4. Printing speed up to 200 mm/sec.
  5. Operating temperature: -20 to +60 degrees Celsius
  6. Lock-free cutter (recovering automatically from locked state)
  7. Supporting various types of 2D barcodes printing
  8. Optional LED bezel or presenter is attachable.
See more details of the productSee more details of the product

Model name：NP-KV30BM

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state)
  6. Supporting various types of 2D barcodes printing
  7. Optional LED bezel or presenter is attachable.

    * The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
See more details of the productSee more details of the product

Model name：NP-KV30BK

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. It is equipped with 3-ways bracket which enable to change the installing position to the standards, the tilt and the vertical for variety of installations.
  4. Printing speed up to 200 mm/sec.
  5. Operating temperature: -20 to +60 degrees Celsius
  6. Lock-free cutter (recovering automatically from locked state)
  7. Supporting various types of 2D barcodes printing
  8. Optional LED bezel or presenter is attachable.

    * The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
See more details of the productSee more details of the product
