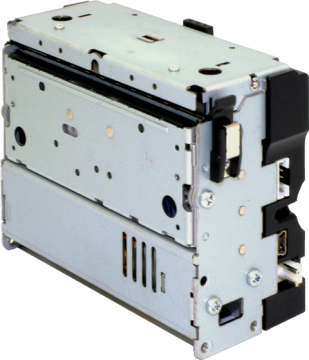

Ultra compact and high performance 3 inch KIOSK printer module
with USB interface

NP-KV30UM

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • 厚紙
  • Paper width 80mm
NPKV30_Eng

Product featuresProduct features

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state.)
  6. Supporting various types of 2D barcodes printing.

Main specificationsMain specifications

Model name NP-KV30UM
Print speed 200 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm
Print width 72 mm
Paper diameter -
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR cord (model2), Split QR codes (model2), Micro QR code
Interface USB (V2.0 Full Speed)
Cutter Full cut and Partial cut by the command
External dimensions 107 (W) x 46 (D) x 80.7 (H) mm
Options PS11-E2/U2, BEZ-230

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product
