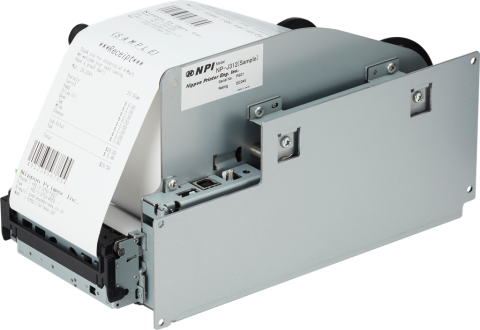

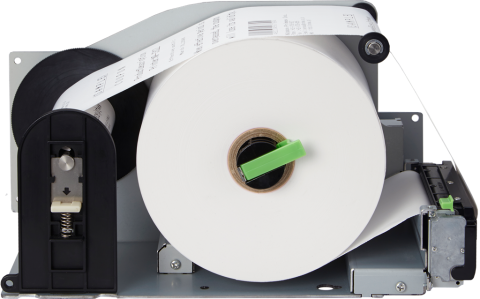

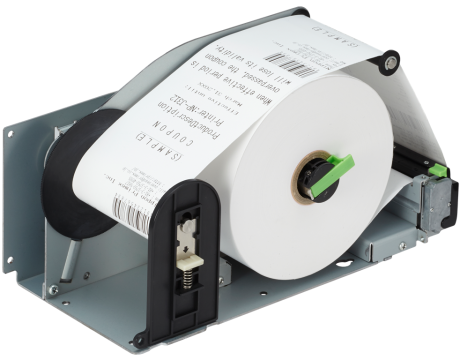

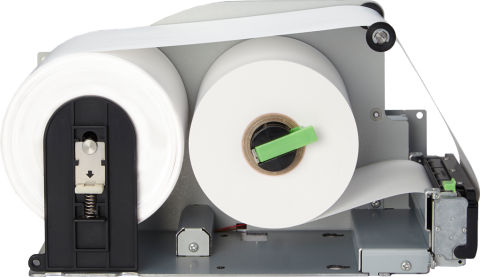

3 inch Journal printer


  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • シリアルインターフェイス
  • Paper width 80mm

Product featuresProduct features

  1. Large paper holder up to 120 mm O.D.

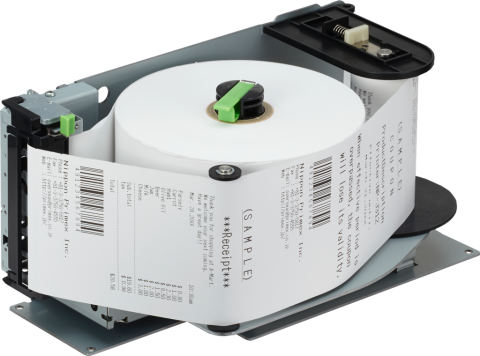

  2. Flexible 3 mounting positions for easy installation
  3. Easy paper replacement by auto-loading function

Main specificationsMain specifications

Model name NP-J312D
Print speed 100 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm
Print width 72 mm
Paper diameter 120 mm
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E、EAN-13, EAN-8, CODE39, ITF, CODABAR, CODE128, CODE93, QR code (model2)
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter -
External dimensions 124.1 (W) x 271.9 (D) x 137.6 (H) mm
(Incl. 120 mm roll paper)
Options PS11-E2/U2


If you have any question, please contact us.


Model name:PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
