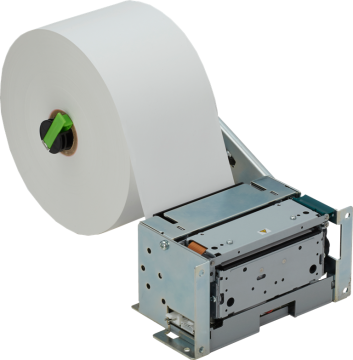

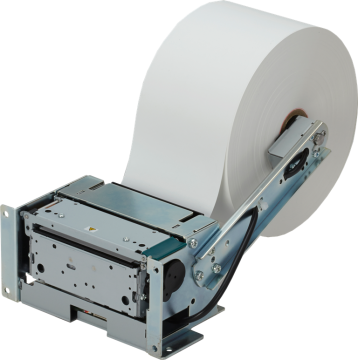

High performance and high reliability face mount model
3 inch KIOSK printer


  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 80mm

Product featuresProduct features

  1. High printing speed up to 250 mm/sec.
  2. 16 gray scale printing
  3. Applicable for large roll paper up to 150mm O.D. as default.

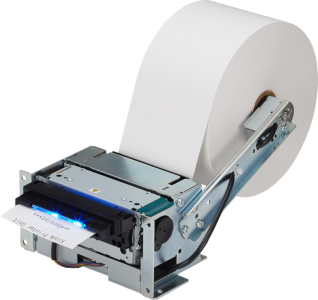

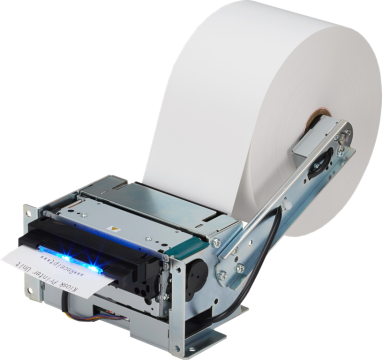

  4. Optional LED bezel is attachable.
  5. Applicable for the thick paper. (Paper thickness : 59 to 150 micrometres)

Main specificationsMain specifications

Model name NP-F3692D
Print speed 250 mm/sec.
Number of dots / Line 576 dots (default) / 640 dots
Paper width 80 mm
Print width 72 mm (default) / 80 mm
Paper diameter 150 mm
Character International, Chinese, Korea, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, QR code (model 2), PDF417
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 139.6 (W) x 203 (D) x 110 (H) mm
Options PS11-E2/U2, BEZ-330, BEZ-230/231


If you have any question, please contact us.


Model name:PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.

Model name:BEZ-330

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.

Model name:BEZ-230/231

  1. BEZ-230 is a simple bezel.
  2. BEZ-231 comes with paper detection sensor.
