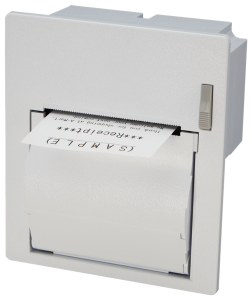

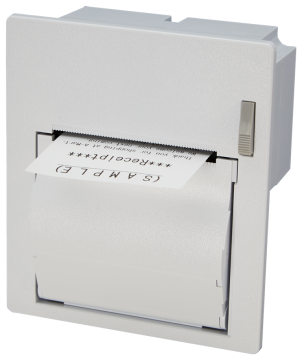

Panel mount model for easy paper replacement
2 inch panel mount printer with auto-cutter


  • 203dpi
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • パラレルインターフェイス
  • Low voltage drive
  • Paper width 58mm

Product featuresProduct features

  1. Low price and super compact panel mount printer

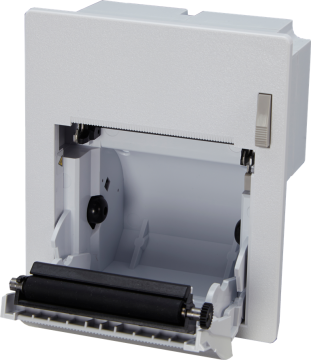

  2. Due to panel mount design, it is easy to replace the paper from the outer panel of the terminal.
  3. Lock-free cutter (recovering automatically from locked state)
  4. It is equipped with a paper near end sensor.
  5. Supporting multi interfaces, USB, Serial (RS232C) and Parallel (Centronics) connection
  6. Supporting 2D barcode (QR code model2) printing.

Main specificationsMain specifications

Model name NP-P2062M
Print speed 100 mm/sec.
Number of dots / Line 384 dots
Paper width 58 mm
Print width 48 mm
Paper diameter 50 mm
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR code(model2)
Interface USB (V2.0 Full Speed), Serial (RS232C) and Parallel (Centronics)
Cutter Full cut and partial cut by the command
External dimensions 101 (W) x 66 (D) x 116 (H) mm
Options PS13-E/U
