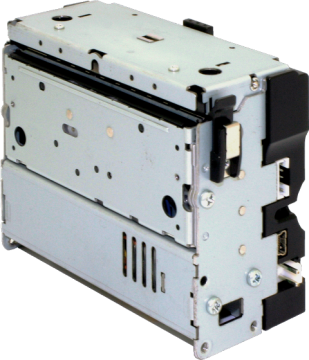

Ultra compact and high performance 3 inch KIOSK printer module
with USB and serial interface

NP-KV30DM

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 80mm
NPKV30_Eng

Product featuresProduct features

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state)
  6. Supporting various types of 2D barcodes printing
  7. Optional LED bezel or presenter is attachable.

Main specificationsMain specifications

Model name NP-KV30DM
Print speed 200 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm
Print width 72 mm
Paper diameter -
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR cord (model2), Split QR codes (model2), Micro QR code
Interface USB (V2.0 Full Speed), Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 107 (W) x 46 (D) x 80.7(H) mm
Options PS11-E2/U2, NPT-308L, BEZ-330, BEZ-230, BEZ-231

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

Model name：NPT-308L

  1. Paper retraction function
  2. Blue and Red LED indicate various of status
  3. Simple and compact design
See more details of the productSee more details of the product

Model name：BEZ-330

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.
See more details of the productSee more details of the product

Model name：BEZ-230/231

  1. BEZ-230 is a simple bezel.
  2. BEZ-231 comes with paper detection sensor.
See more details of the productSee more details of the product
