High reliability model
2 inch KIOSK printer

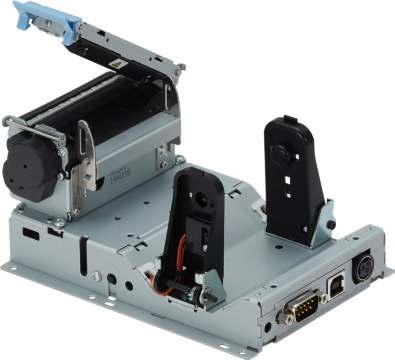

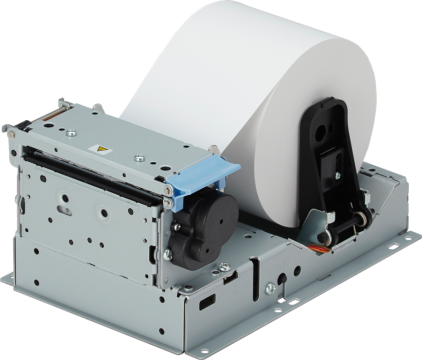

NP-2511D-2

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 58mm
  • Paper width 60mm
  • Gradation print
NP2511D_Eng

Product featuresProduct features

  1. Printing speed up to 200 mm/sec.
  2. Operating temperature: -20 to +60 degrees Celsius
  3. 16 gray scale printing
  4. Supporting 2D barcodes (QR code model2 and PDF417) printing
  5. Lock-free cutter (recovering automatically from locked state)
  6. Applicable for the thick paper (Paper thickness: 59 to 150 micrometres)
  7. Optional LED bezel is attachable.

Main specificationsMain specifications

Model name NP-2511D-2
Print speed 200 mm/sec.
Number of dots / Line 448 dots
Paper width 58 mm (Default), 60 mm
Print width 52 mm (Default), 56 mm
Paper diameter 83 mm (250 mm : to use with optional paper holder: UPH-U250)
Character International, English, Chinese, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39,
CODABAR, ITF, CODE128, QR code (model 2), PDF417
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and partial cut by the command
External dimensions 106 (W) x 150 (D) x 75 (H) mm
Options PS11-E/U, BEZ-320, BEZ-221, BEZ-220, UPH-LA, UPH-U250

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E/U

  1. Power supply DC24V
See more details of the productSee more details of the product

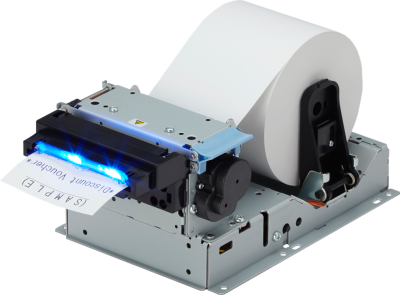

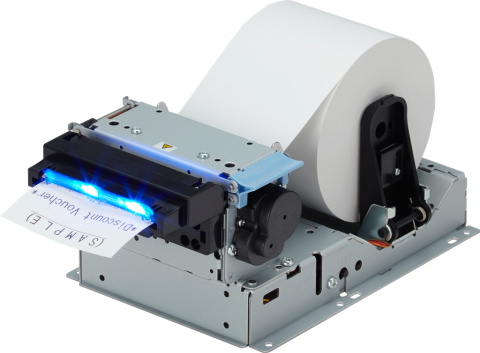

Model name：BEZ-320

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.
See more details of the productSee more details of the product

Model name：BEZ-220/221

  1. BEZ-220 is a simple bezel.
  2. BEZ-221 comes with paper detection sensor.
See more details of the productSee more details of the product

Model name：UPH-LA

  1. Multiple paper positioning
  2. It comes with paper near end sensor.
See more details of the productSee more details of the product

Model name：UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
See more details of the productSee more details of the product
