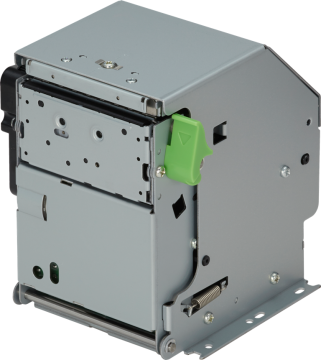

Front operation type
2 inch KIOSK printer

NP-2701D

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • Paper width 58mm
NP2701_Eng

Product featuresProduct features

  1. Small foot print for easy installation

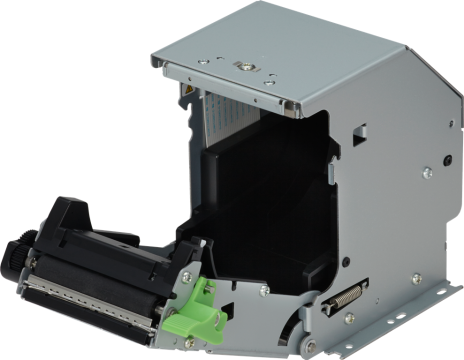

  2. Front operation type for easy paper replacement
  3. High cost performance
  4. Supporting 2D barcodes (QR code model2) printing

Main specificationsMain specifications

Model name NP-2701D
Print speed 170 mm/sec.
Number of dots / Line 432 dots
Paper width 58 mm
Print width 54 mm
Paper diameter 83 mm
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, ITF, CODE39, CODABAR, CODE128, QR code (model2)
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 100 (W) x 112 (D) x 120 (H) mm
Options PS11-E2/U2, BEZ-220/221

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

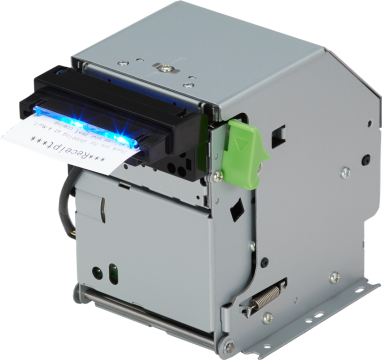

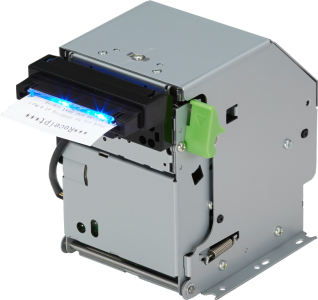

Model name：BEZ-220/221

  1. BEZ-220 is a simple bezel.
  2. BEZ-221 comes with paper detection sensor.
See more details of the productSee more details of the product
