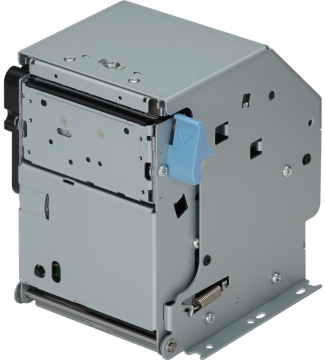

Front operation type
2 inch KIOSK printer

NP-2705D

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • Paper width 58mm
  • Gradation print
NP2705_Eng

Product featuresProduct features

  1. Small foot print for easy installation

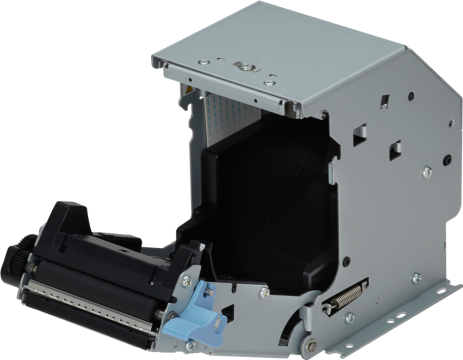

  2. Front operation type for easy paper replacement
  3. Printing speed up to 250 mm/sec.
  4. 16 gray scale printing
  5. Supporting 2D barcodes (QR code model2 and PDF417) printing

Main specificationsMain specifications

Model name NP-2705D
Print speed 250 mm/sec.
Number of dots / Line 432 dots
Paper width 58 mm
Print width 54 mm
Paper diameter 83 mm
Character International, Chinese, Korean, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, QR code (model2), PDF417
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 100 (W) x 112 (D) x 120 (H) mm
Options PS11-E2/U2, BEZ-220/221

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

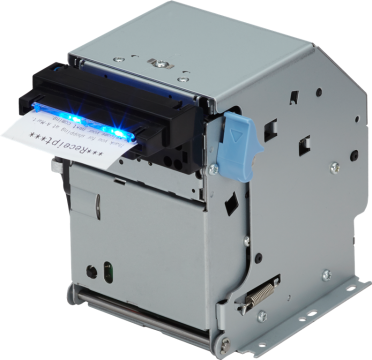

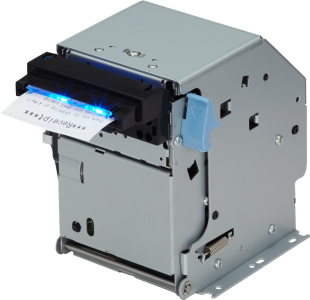

Model name：BEZ-220/221

  1. BEZ-220 is a simple bezel.
  2. BEZ-221 comes with paper detection sensor.
See more details of the productSee more details of the product
