High reliable printing model

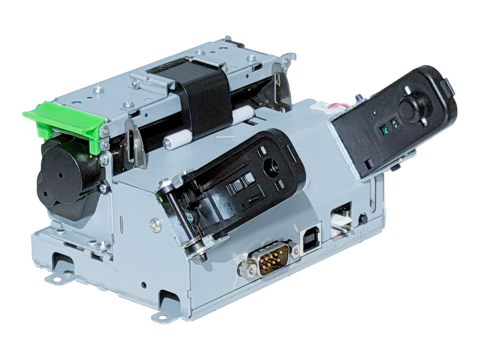

3 inch KIOSK printer

NP-3411D-4

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 80mm
  • Gradation print
🟢 Compact and lightweight. Its design concept, specifically emphasizing a low profile, enables flexible integration into various devices across diverse industries and applications.
🟢 Wide range of the operation temperature from -20 to +60℃ enables adaption to various environments.
🟢 Compatible with the thick paper of max.155um and provides a high-quality receipt.
🟢 Features an auto-loading method for easy paper replacement, plus a head opening mechanism that allows simple recovery from paper jams.
🟢 High reliable original mechanism enables the stable operation for long term.

■Usage

Ideal for kiosk terminals, self-checkout systems, reception systems, ticket vending machines, coupon systems, e-tickets, parking management systems, bicycle parking management systems, automated payment machines, self-service gas stations, parcel lockers, measuring equipment, and more.

Product featuresProduct features

  1. The sandwich-style roll paper holder and auto-loading mechanism make paper replacement easy.

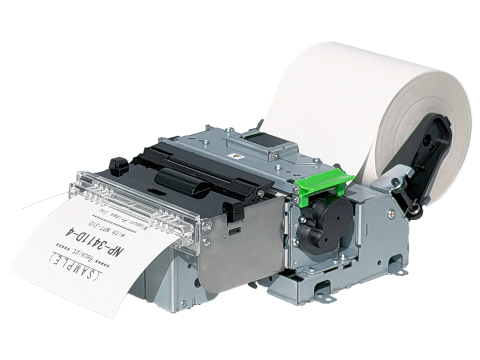

  2. Can be equipped with a presenter featuring an LED function that illuminates the paper ejection slit and a paper retraction function for preventing paper jams. (Option)
  3. Compatible with the roll paper of max.Φ250mm with the big diameter roll paper holder. (Option)
  4. Compatible with the thick paper of max.155um and enables a high-quality printing with 32 gray scale printing.

Main specificationsMain specifications

Model name NP-3411D-4
Print speed 250 mm/sec. at max.
Number of dots / Line 640 dots
Paper width 80 mm
Print width 72 mm
Paper diameter 83 mm (Default)
200 mm to use with optional paper holder: UPH-LA
250 mm to use with optional paper holder: UPH-U250
Character Japanese, Code Page 437, Code Page 858, International Characters, Korean, Greek, Polish, Russian, Scandinavian, Turkish, Arabic, Thai, Hebrew
Barcode ─ 1D Barcode ─
UPC-A/E, JAN-13/8(EAN-13/8), CODE39, ITF, CODABAR, CODE128, CODE93, ISBN, Industrial 2of5, Matrix 2of5, NEC Matrix, MSI Code, EAN-128, GS1, DataBar(Various types)

─ 2D Barcode ─
PDF417, QR code model 2, Split QR codes model 2, Micro QR code, Aztec Code, Micro PDF417, MaxiCode, DataMatrix, EAN13/UPC-A/UPC-E/GS1-128 Composite, GS1 DataBar(Various types)
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and partial cut by the command
External dimensions 124.6(W)×123.5(D)×77.3(H)mm
Options AC adapter, Presenter NPT-310 with LED lighting, Various Bezels（BEZ-6xx）,
Paper holder for large size roll paper up to φ200mm (UPH-LA), Paper holder for large roll paper up to φ250 mm (UPH-U250)

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

Model name：NPT-310

  1. High reliability achieved through a simple structure designed to release paper jams.
  2. Features red and blue LED lightning to indicate various statuses.
  3. Operations of paper clamp, paper retraction and paper clamp release can be controlled.
See more details of the productSee more details of the product

Model name：BEZ-620/621/622

  1. Simple structure.
  2. High reliability which will reduce the paper jam risk.
  3. Adopting the lever mechanics to paper sensor to improve high reliability and high duration. (BEZ-621/622)
See more details of the productSee more details of the product

Model name：BEZ-623/624

  1. Simple structure.
  2. High reliability which will reduce the paper jam risk.
  3. Adopting the lever mechanics to paper sensor to improve high reliability and high duration.
See more details of the productSee more details of the product

Model name：UPH-LA

  1. Multiple paper positioning
  2. It comes with paper near end sensor.
See more details of the productSee more details of the product

Model name：UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
See more details of the productSee more details of the product
