High reliability model
3 inch KIOSK printer

NP-3411D

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 80mm
NP3411D_Eng

Product featuresProduct features

  1. Small foot print
  2. Lock-free cutter (recovering automatically from locked state)
  3. Operating temperature: -15 to +60 degrees Celsius
  4. Paper thickness: 59 to 150 micrometres
  5. Printing speed up to 150 mm/sec.
  6. Optional LED bezel is attachable.

Main specificationsMain specifications

Model name NP-3411D
Print speed 150 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm (Default), 76 mm
Print width 72 mm (Default), 69 mm
Paper diameter 83 mm (250 mm : to use optional paper holder: UPH-U250)
Character International, English, Chinese, Korea, Greek, Polish, Russian,
Scandinavian, Turkish, Japaniese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, QR code（model2）
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and partial cut by the command
External dimensions 124.6 (W) x 123.5 (D) x 77.3 (H) mm
Options PS11-E2/U2, BEZ-330, BEZ-230, BEZ-231, UPH-LA, UPH-U250

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

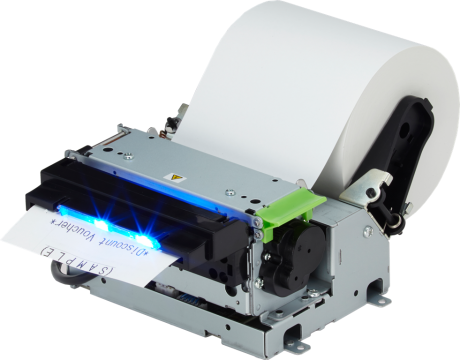

Model name：BEZ-330

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.
See more details of the productSee more details of the product

Model name：BEZ-230/231

  1. BEZ-230 is a simple bezel.
  2. BEZ-231 comes with paper detection sensor.
See more details of the productSee more details of the product

Model name：UPH-LA

  1. Multiple paper positioning
  2. It comes with paper near end sensor.
See more details of the productSee more details of the product

Model name：UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
See more details of the productSee more details of the product
