High reliability and High speed printing model

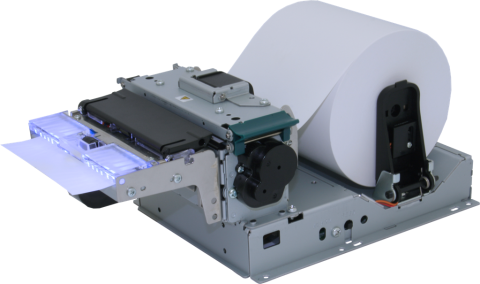

3 inch KIOSK printer

NP-3611AD

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 76mm
  • Paper width 80mm

Product featuresProduct features

  1. Printing speed up to 250 mm/sec.
  2. 16 gray scale printing
  3. Operating temperature: -20 to +60 degrees Celsius
  4. Lock-free cutter (recovering automatically from locked state)
  5. Optional LED bezel or presenter is attachable.
  6. Applicable for the thick paper. (Paper thickness: 59 to 150 micrometres)
  7. Supporting 2D barcodes (QR code model2 and PDF417) printing.

Main specificationsMain specifications

Model name NP-3611AD
Print speed 250 mm/sec.
Number of dots / Line 640 dots
Paper width 80 mm (Default), 76 mm
Print width 72 mm (Default), 70 mm, 80 mm
Paper diameter 83 mm
Character International, English, Chinese, Korea, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, QR code (model2), PDF417
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 127 (W) x 150 (D) x 80.2 (H) mm
Options PS11-E/U, NPT-308L, BEZ-330, BEZ-230, BEZ-231

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name:NPT-308L

  1. Paper retraction function
  2. Blue and Red LED indicate various of status
  3. Simple and compact design

Model name:BEZ-330

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.

Model name:BEZ-230/231

  1. BEZ-230 is a simple bezel.
  2. BEZ-231 comes with paper detection sensor.

Model name:UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
