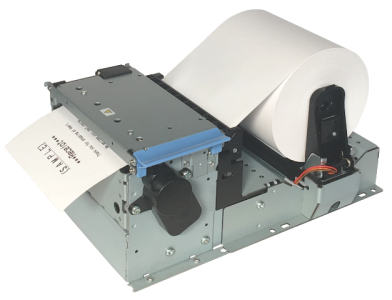

High resolution printing model for receipt, ticket and label printing
2-3 inch adjustable KIOSK printer

NP-3A11UK

  • 300dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • 厚紙
  • Paper width 58mm
  • Paper width 60mm
  • Paper width 65mm
  • Paper width 76mm
  • Paper width 80mm
  • Paper-width 82.5mm

Product featuresProduct features

  1. High resolution 300 dpi printing

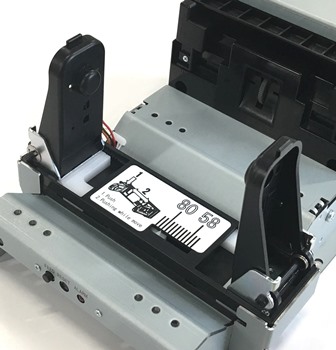

  2. Paper width adjustable (53 to 86 mm by 11 steps)
  3. Operating temperature: -20 to +60 degrees Celsius

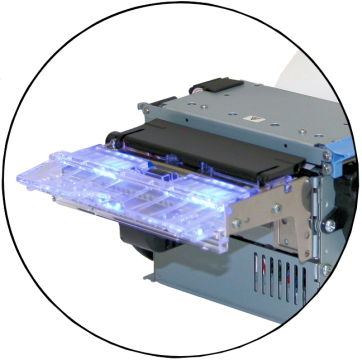

  4. Optional LED bezel or presenter is attachable.
  5. It is equipped with "Mega Font" which composed of the almost 2 times dots from conventional font, to provide for maximizing the legibility of printed receipt.
  6. Supporting 2D barcode (QR code model2 and PDF417) printing

Main specificationsMain specifications

Model name NP-3A11UK
Print speed 150 mm/sec.
Number of dots / Line 960 dots
Paper width 53 to 86 mm
Print width 81.3 mm (at max.)
Paper diameter 83 mm (250 mm: to use with optional paper holder UPH-U250)
Character International, English, Chinese, Korea, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, QR code (model2), PDF417
Interface USB (V2.0 Full Speed)
Cutter Full cut and Partial cut by the command
External dimensions 123.7 (W) x 187.6 (D) x 87.4 (H) mm
Options PS11-E2/U2, NPT-308L, NPT-308LL, BEZ-330, BEZ-230/231, UPH-U250

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name:PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.

Model name:NPT-308L

  1. Paper retraction function
  2. Blue and Red LED indicate various of status
  3. Simple and compact design

Model name:NPT-308LL

  1. Paper retraction function
  2. Blue and Red LED indicate various of status
  3. Simple and compact design

Model name:BEZ-330

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.

Model name:BEZ-230/231

  1. BEZ-230 is a simple bezel.
  2. BEZ-231 comes with paper detection sensor.

Model name:UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
