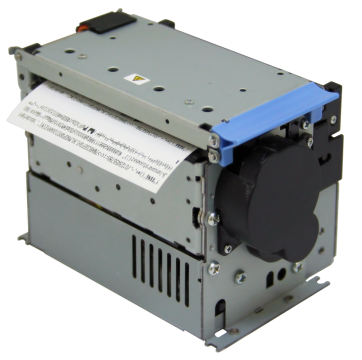

High resolution printing model for receipt, ticket and label printing
2-3 inch adjustable printer module

NP-3B11U

  • 300dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • ラベル紙
  • Paper width 58mm
  • Paper width 60mm
  • Paper width 65mm
  • Paper width 76mm
  • Paper width 80mm
  • Paper-width 82.5mm
NP3B11U_Eng

Product featuresProduct features

  1. High resolution 300dpi printing
  2. Applicable for the thick paper (Paper thickness: 120 to 250 micrometres)
  3. Paper width adjustable (53 to 86mm)
  4. Operating temperature: -20 to +60 degrees Celsius
  5. It is equipped with "Mega Font" which has almost 2 times many dots as those of regular fonts.
    It realizes large and clear text printing.
  6. Supporting 2D barcodes (QR code model2 and PDF417) printing

Main specificationsMain specifications

Model name NP-3B11U
Print speed 150 mm/sec.
Number of dots / Line 960 dots
Paper width 53 to 86 mm adjustable
Print width 81.3 mm (at max.)
Paper diameter 83 mm (250 mm: to use with optional paper holder UPH-U250)
Character International, English, Chinese, Korea, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, QR code (model2), PDF417
Interface USB (V2.0 Full Speed)
Cutter Full cut
External dimensions 120.5 (W) x 76.1 (D) x 83.5 (H) mm
Options PS11-E2/U2, UPH-LA, UPH-U250

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product

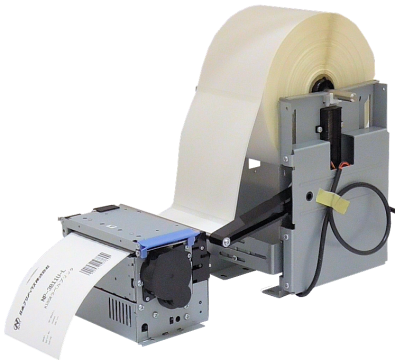

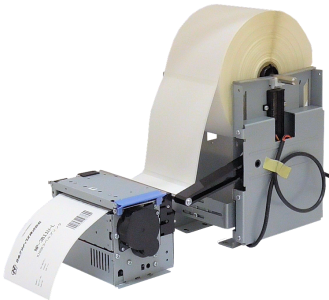

Model name：UPH-LA

  1. Multiple paper positioning
  2. It comes with paper near end sensor.
See more details of the productSee more details of the product

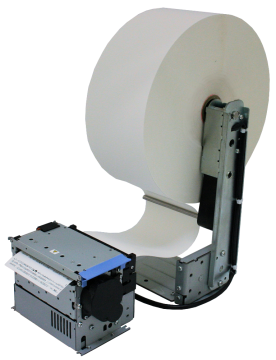

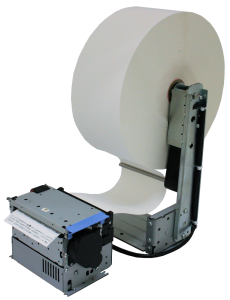

Model name：UPH-U250

  1. Firm structure to support large roll paper
  2. It comes with paper near end sensor.
  3. Paper width adjustable: 58 mm, 60 mm, 80 mm, 85 mm, 112 mm
See more details of the productSee more details of the product
