2 inch KIOSK printer kit

NP-E205

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • Paper width 58mm

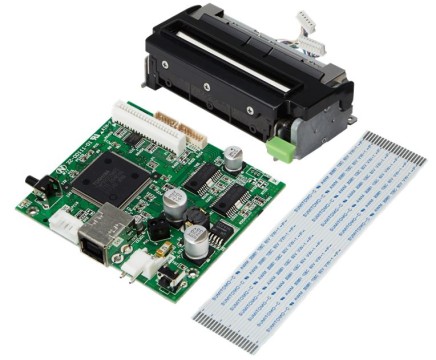

2 inch kiosk printer kit consists of the following components

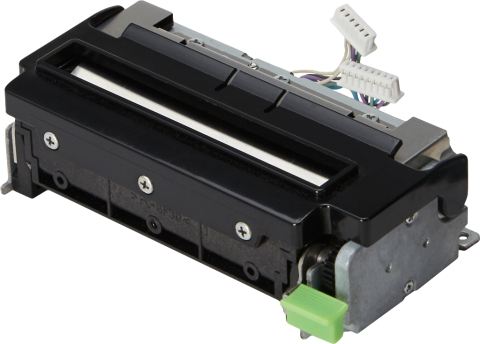

1. Mechanism and integrated cutter

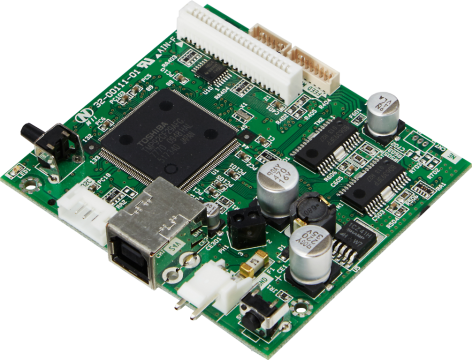

2. Control board with on-board I/F (USB and RS232C) + Power connector

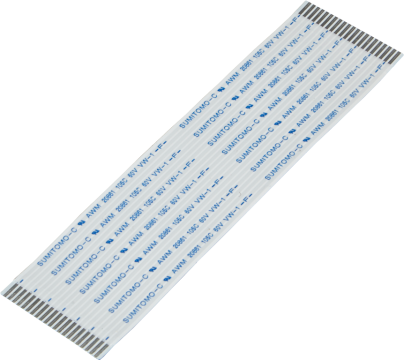

3. Flat flexible cable

Product featuresProduct features

  1. High cost performance
  2. Lock-free cutter (recovering automatically from locked state)
  3. Easy paper replacement by auto-loading function
  4. Supporting 2D barcode (QR code model2) printing.

Main specificationsMain specifications

Model name NP-E205
Print speed 150 mm/sec.
Number of dots / Line 432 dots
Paper width 58 mm
Print width 54 mm
Paper diameter -
Character International, English, Japanese, Polish, Russian, Scandinavian, Turkish
Barcode UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE128, QR code (model 2)
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 81.2 (W) x 40.0 (D) x 21.6 (H) mm (Mechanism)
