High reliability 2 inch KIOSK printer kit

NP-K2510A

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 58mm

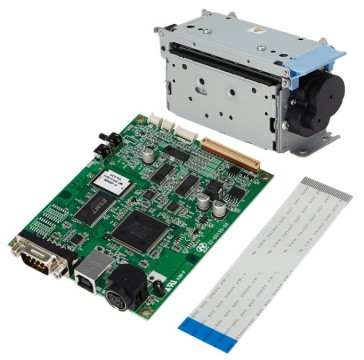

2 inch kiosk printer kit consists of the following components

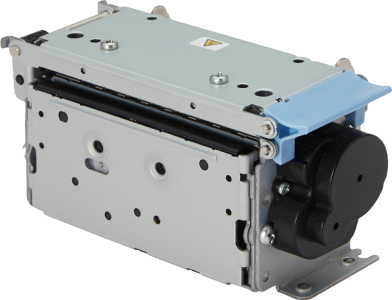

1. Mechanism and integrated cutter

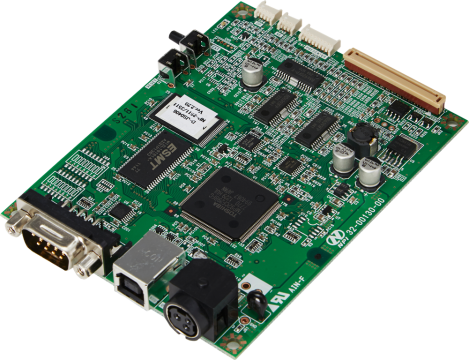

2. Control board with on-board I/F (USB and RS232C) + Power connector

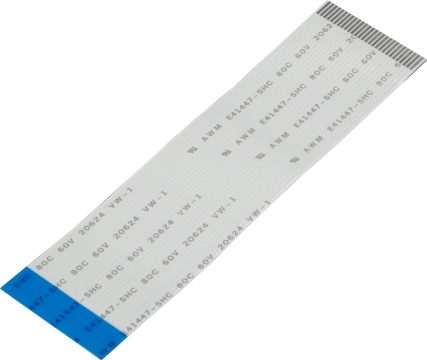

3. Flat flexible cable

Product featuresProduct features

  1. Easy paper replacement by auto-loading function
  2. Lock-free cutter (recovering automatically from locked state)
  3. Applicable for the thick paper (Paper thickness: 59 to 150 micrometres)
  4. Operating temperature: -20 to +60 degrees Celsius

Main specificationsMain specifications

Model name NP-K2510A
Print speed 200 mm/sec.
Number of dots / Line 448 dots
Paper width 58 mm (default), 60 mm
Print width 52 mm (default), 54mm, 56mm
Paper diameter -
Character International, English, Greek, Polish, Russian, Scandinavian, Turkish, Chinese, Korean, Japanese
Barcode UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE128
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and Partial cut by the command
External dimensions 94.8 (W) x 46.8 (D) x 49.4 (H) mm (Mechanism)

InquiryInquiry

If you have any question, please contact us.
