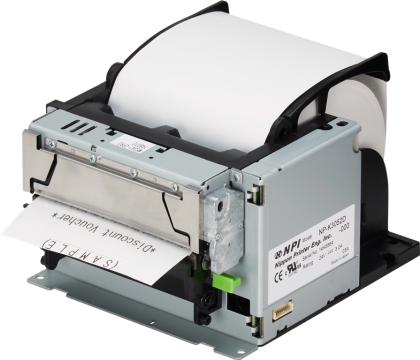

Revolutionary paper drop-in type
3 inch KIOSK printer


  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス

Product featuresProduct features

  1. Low price, super compact KIOSK printer
  2. Realizing 88.6 mm height with outer diameter 80 mm roll paper loaded
  3. Printing speed up to 150 mm/sec.
  4. Easy paper replacement by auto-loading function
  5. Supporting 2D barcode (QR code model2) printing.

Main specificationsMain specifications

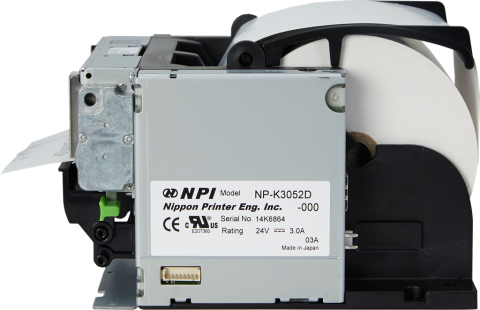

Model name NP-K3052D
Print speed 150 mm/sec.
Number of dots / Line 576 dots
Paper width 80 mm
Print width 72 mm
Paper diameter 80 mm
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR code(model2)
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and partial cut by the command
External dimensions 111.1 (W) x 133.4 (D) x 88.6 (H) mm
Options PS11-E2/U2


If you have any question, please contact us.


Model name:PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
