Ultra compact and high performance 2 inch KIOSK printer module
with USB, Serial and Bluetooth interface

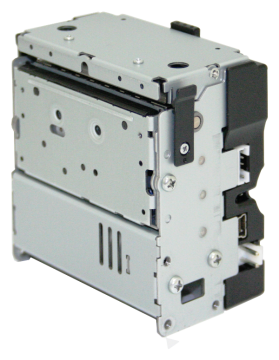

NP-KV20BM

  • 203dpi
  • 24V駆動
  • Bluetooth
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • 厚紙
  • Paper width 58mm

Product featuresProduct features

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.
  3. Printing speed up to 200 mm/sec.
  4. Operating temperature: -20 to +60 degrees Celsius
  5. Lock-free cutter (recovering automatically from locked state)
  6. Supporting various types of 2D barcodes printing
  7. Optional LED bezel or presenter is attachable.

    * The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

Main specificationsMain specifications

Model name NP-KV20BM
Print speed 200 mm/sec.
Number of dots / Line 448 dots
Paper width 58 mm
Print width 56 mm
Paper diameter -
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR cord (model2), Split QR codes (model2), Micro QR code
Interface USB (V2.0 Full Speed), Serial (RS232C), Bluetooth (V2.1+EDR compatible)
Cutter Full cut and Partial cut by the command
External dimensions 86 (W) x 46 (D) x 80.7 (H) mm
Options PS11-E2/U2, NPT-308L, BEZ-330, BEZ-230, BEZ-231

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name:PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.

Model name:NPT-308L

  1. Paper retraction function
  2. Blue and Red LED indicate various of status
  3. Simple and compact design

Model name:BEZ-330

  1. Blue and Red LED indicate various of status.
  2. It is equipped with a paper detection sensor.

Model name:BEZ-230/231

  1. BEZ-230 is a simple bezel.
  2. BEZ-231 comes with paper detection sensor.
