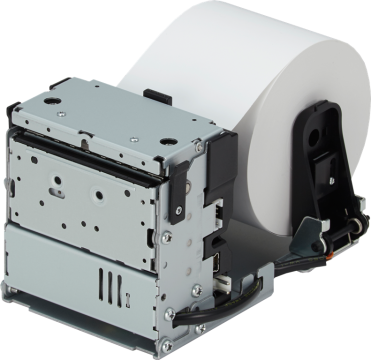

Ultra compact and high performance 2 inch KIOSK printer
with USB interface

NP-KV20UK

  • 203dpi
  • 24V駆動
  • USBインターフェイス
  • オートカッタ
  • 厚紙
  • Paper width 58mm
NPKV20_Eng

Product featuresProduct features

  1. All in one, ultra compact printer module
  2. Mechanism, auto-cutter, control board and interface are built-in.

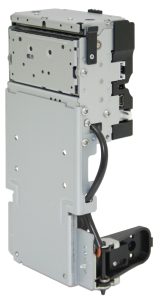

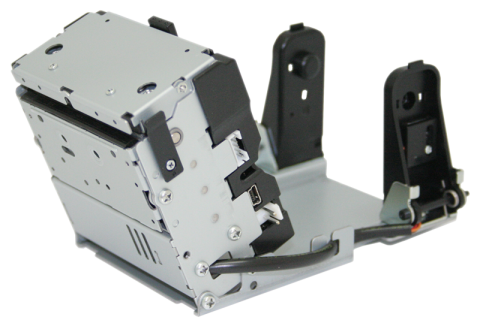

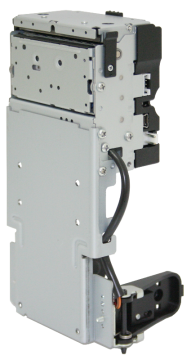

  3. It is equipped with 3-ways bracket which enable to change the installing position to the standards, the tilt and the vertical for variety of installations.
  4. Printing speed up to 200 mm/sec.
  5. Operating temperature: -20 to +60 degrees Celsius
  6. Lock-free cutter (recovering automatically from locked state)
  7. Supporting various types of 2D barcodes printing.

Main specificationsMain specifications

Model name NP-KV20UK
Print speed 200 mm/sec.
Number of dots / Line 448 dots
Paper width 58 mm
Print width 56 mm
Paper diameter 90 mm
Character International, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39, CODABAR, ITF, CODE128, CODE93, GS1 DataBar, QR cord (model2), Split QR codes (model2), Micro QR code
Interface USB (V2.0 Full Speed)
Cutter Full cut and Partial cut by the command
External dimensions 97.6 (W) x 118 (D) x 81.4 (H) mm
Options PS11-E2/U2, BEZ-230

InquiryInquiry

If you have any question, please contact us.

OptionOption

Model name：PS11-E2/U2

  1. Power supply DC24V
  2. 2 pin converter is bundled.
See more details of the productSee more details of the product
  • Search a printer
