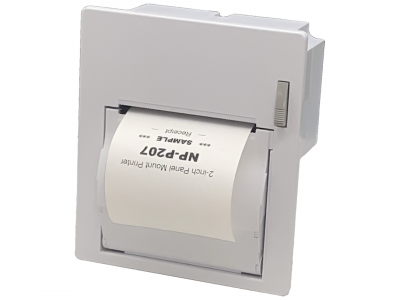

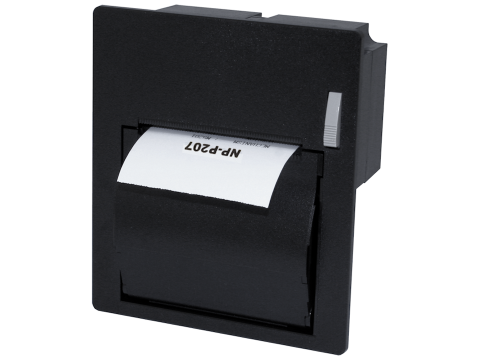

Panel mount model for easy paper replacement
2 inch Panel Mount Printer

NP-P2071M

  • 203dpi
  • USBインターフェイス
  • シリアルインターフェイス
  • パラレルインターフェイス
  • Low voltage drive
  • Paper width 58mm
A slim panel mount printer with a depth of just 66mm.
Despite its low-voltage DC 8.5V operation, it achieves high-speed printing at up to 100mm/sec.

■Usage

Ideal for kiosk terminals, self-checkout systems, automated payment machines, queue management system, measuring equipment, and more.

Product featuresProduct features

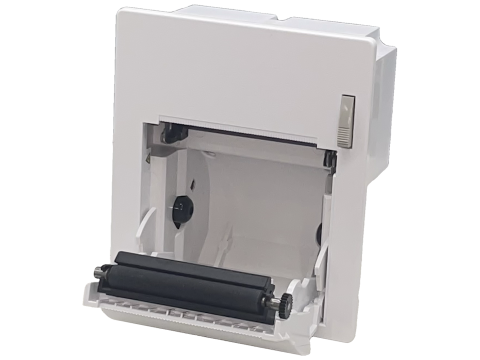

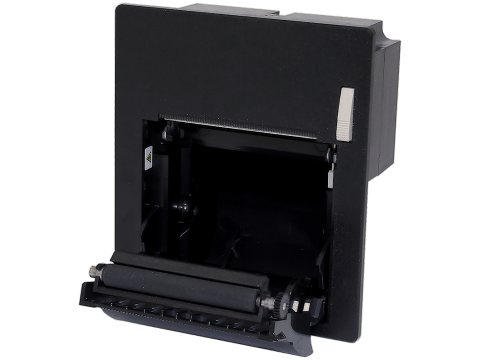

  1. Front panel of the printer opens wide and enables easy paper replacements by the drop-in method.
  2. Low voltage drive from DC5V to 8.5V
  3. In addition to printing various barcodes, it supports printing a wide variety of 2D codes, including QR codes.
  4. It is equipped with a paper near end sensor.
  5. Supporting multiple interfaces, USB2.0 (Full-Speed) , Serial (RS232C) and Parallel (Centronics) connection

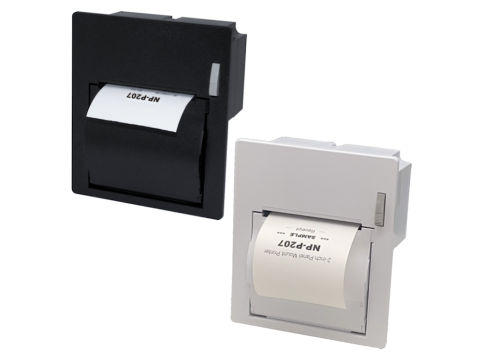

  6. Panel colors can be selected from White or Black color.

Main specificationsMain specifications

Model name NP-P2071M
Print speed 100mm/sec. at max.
Number of dots / Line 384 dots
Paper width 58 mm
Print width 48 mm
Paper diameter 50 mm
Character Japanese, Code Page 437, Code Page 858, International Characters, Korean, Greek, Polish, Russian, Scandinavian, Turkish, Arabic, Thai, Hebrew
Barcode ─ 1D Barcode ─
UPC-A/E, JAN-13/8(EAN-13/8), CODE39, ITF, CODABAR, CODE128, CODE93, ISBN, Industrial 2of5, Matrix 2of5, NEC Matrix, MSI Code, EAN-128, GS1, DataBar(Various types)

─ 2D Barcode ─
PDF417, QR code model 2, Split QR codes model 2, Micro QR code, Aztec Code, Micro PDF417, MaxiCode, DataMatrix, EAN13/UPC-A/UPC-E/GS1-128 Composite, GS1 DataBar(Various types)
Interface USB (V2.0 Full Speed) , Serial (RS232C) and Parallel (Centronics)
Cutter Tear bar
External dimensions 101.0(W)×66.0(D)×116.0(H)mm
Options PS13-E/U

InquiryInquiry

If you have any question, please contact us.
