Panel mount model for easy paper replacement

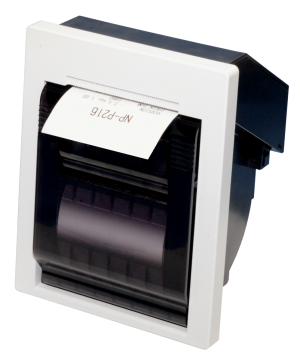

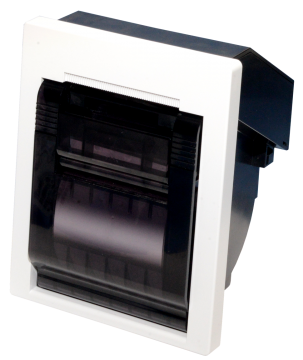

2 inch panel mount printer with built-in auto cutter

NP-P2162D

  • 203dpi
  • USBインターフェイス
  • オートカッタ
  • シリアルインターフェイス
  • Low voltage drive
  • Paper width 58mm
NP-P2162D_Eng

Product featuresProduct features

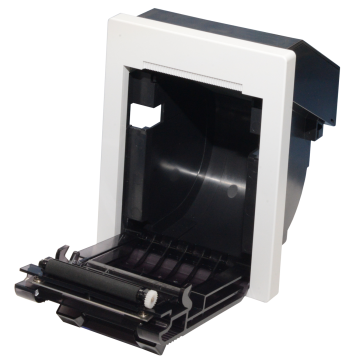

  1. Due to panel mount design, it is easy to replace the paper from the outer panel of the terminal.
  2. Lock-free cutter (recovering automatically from locked state)
  3. It can support max. 83mm outer diameter roll paper which is the largest class for a panel mount printer.
  4. It supports USB and Serial (RS232C) interfaces.
  5. It supports 2D barcode (QR code model2) printing.
  6. Low voltage operation DC5-8.5V

Main specificationsMain specifications

Model name NP-P2162D
Print speed 100 mm/sec.
Number of dots / Line 384 dots
Paper width 58 mm
Print width 48 mm
Paper diameter 83 mm
Character International, English, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, JAN-8(EAN-8), JAN-13(EAN-13), ITF,CODE128, CODE39, CODABAR, CODE93, GS1 DataBar, QR code (model2)
Interface USB (V2.0 full speed) and Serial (RS232C)
Cutter Full cut and Partial cut (by command)
External dimensions 108 (W) x 91.3 (D) x 134 (H) mm
